Remember Jerrigeverything iPhone Air Purability Test? Okay, the same device, which host Zack turned using an engine hoisting with more pressure than 97 kg (216LBS), received tierdown treatment.
Apple iPhone 17 Air

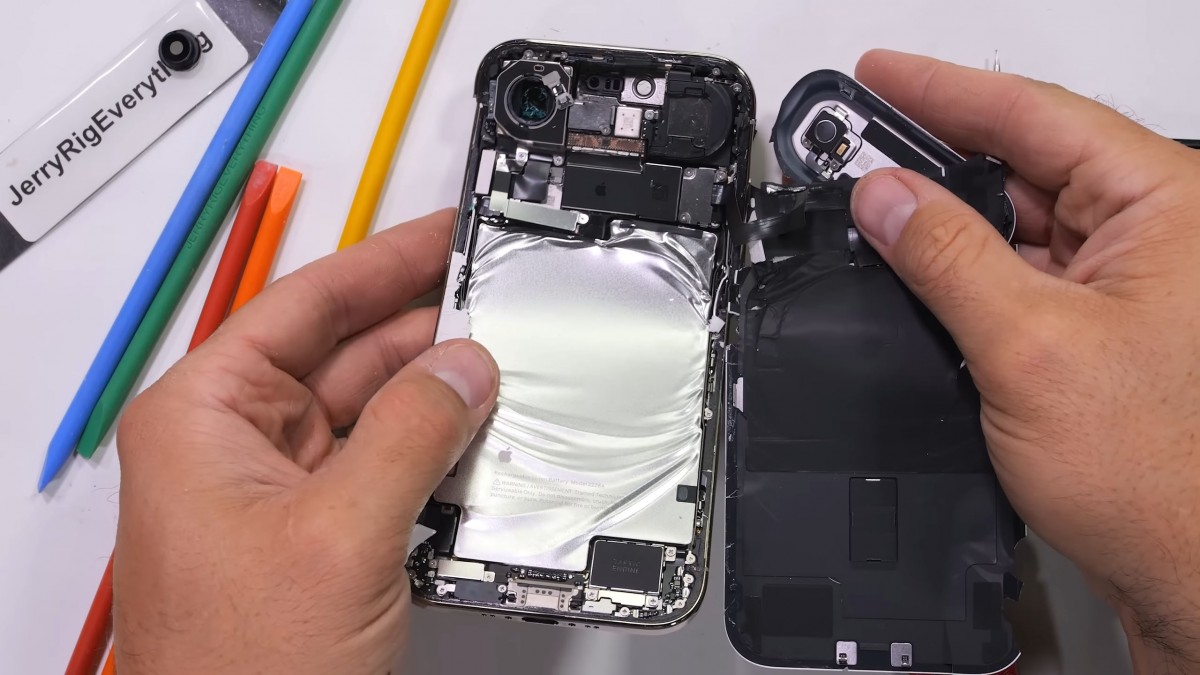

This flashing iPhone is quite easy to remove – you just need to remove a few heat, a prying tool and two pentalobe screws. The interior is primarily occupied by a metal-composed 3,149mAh battery, and we can see Magsef Magnets and Copper Coils, which facilitates wireless charging.
The screen is conducted by huge amounts of glue as well as a tri-point screw and two ribbon cables.
Back on the other side, where the battery is held in place by the same electrically adhesive adhesive as the iPhone 16 and 16 plus. Once the special tab on the battery becomes active with the right voltage, the bridge-tows release the battery.
iPhone Air Motherboard and USB-C port
Then we take a good look at major components like motherboard, camera and fancy titanium 3D-printed USB-C housing. Watch the full video below.
